LG VRF / MULTI V 5
MULTI V 5 is an integrated solution that combines advanced technologies for high rise buildings. It provides maximum energy efficiency while minimizing operational costs and its Dual Sensing Control senses humidity & temperature.
Overview
Benefits for users
Application Solutions
Overview
Multi V 5
- Capacity: 26HP To 96HP*
- 5th Generation Inverter
- BLDC Inverter
- New bearing with PEEK material
- HiPORTM, Oil Sensor, VI
- Range : 10Hz ~ 165Hz
* Based on Non Tropical model
Benefits for users
– Operation Cost Saving
- High efficiency is assured through all capacity and lineup.Â
- Maximum 31% of cost saved through MULTI V 5 Smart Load Control.*
– Comfortable Cooling & Heating
- Smart Load Control maximizes indoor comfort
- Dual sensing offers pleasant and comfortable cooling and heating environment.
- Duration time of Continuous Heating is 11% longer than previous model.**
– Convenient Functions
- Low-noise operation provides a restful
Application Solutions
1. Office
Supporting efficiency with flexibility
– High Rise Office Building
– Small to Medium sized Office Building
2. Commercial
Maximize business, minimize costs
– Shopping Mall
– Retail
– QSR
3. Hospitality
Meeting diverse needs in every aspect
4. Residential
Home is where your comfort is
– Condominium & Apartments
– Single Family House & Villa

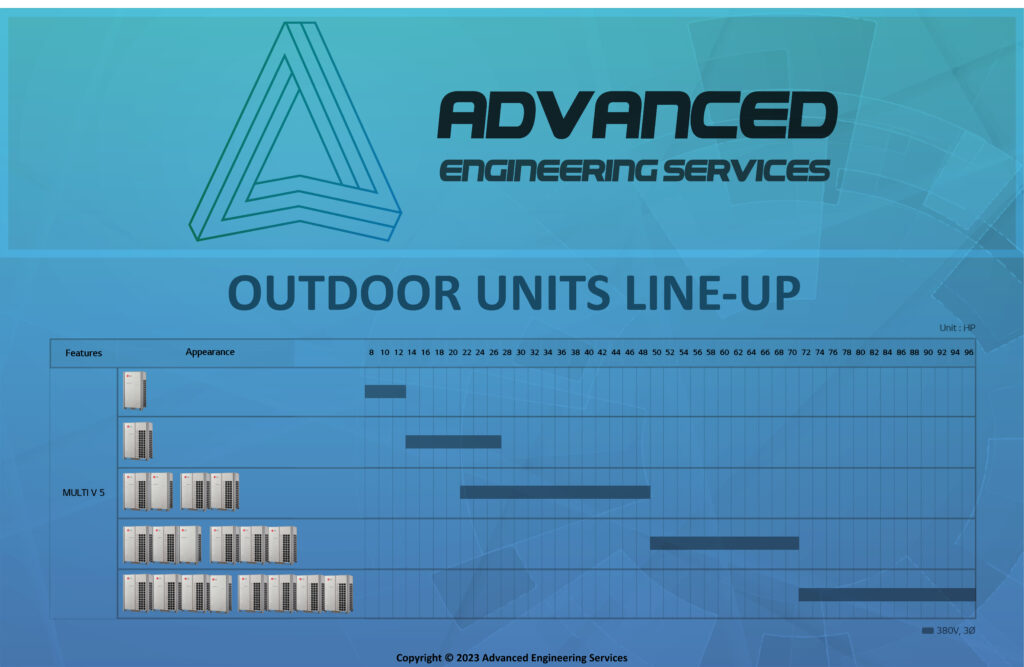

Multi V 5 Line Up
![](https://advanced-eng.com/wp-content/uploads/2023/11/Line-Up-of-Multi-V-5-01-scaled.jpg)
Features
![](https://advanced-eng.com/wp-content/uploads/2023/08/02-1024x683.png)
![](https://advanced-eng.com/wp-content/uploads/2023/08/01-1024x683.png)
![](https://advanced-eng.com/wp-content/uploads/2023/08/05-1024x683.png)
![](https://advanced-eng.com/wp-content/uploads/2023/08/04-1024x683.png)
![](https://advanced-eng.com/wp-content/uploads/2023/08/03-1024x683.png)
Multi V 5 Units
Multi V 5 Singular Outdoor Unit
- Model Name:
– Combination Unit: ARUN080LTH5
– Independent Unit: ARUN080LTH5 – 1 - Type: Air Source Heat Pump & Heat Recovery
- Color: Warm Grey NL503K/Dawn Grey NL507K
- Power Supply:
Φ, V, Hz
3, 380-415, 50
Nominal CapacityÂ
- Cooling (Rated) – kW:Â 22.4
- Heating (Rated) – kW:Â 25.2
- Dimensions (W x H x D) – mm: (930 x 1,690 x 760) x 1
- Net weight – kg: 173 × 1
- Number of Maximum Connectable Indoor Units:Â 13
- Pipe Connctions (Gas Pipe) – mm (inch): 19.05 (3/4)
- Sound Pressure Level (Cooling) – dB(A): 58.0
- Sound Pressure Level (Heating) – dB(A): 60.0
- Sound Power Level (Cooling) – dB(A): 78.0
- Sound Power Level (Heating) – dB(A): 80.0
Multi V 5 Singular Outdoor Unit
- Model Name:
– Combination Unit:Â ARUN100LTH5
– Independent Unit:Â ARUN100LTH5Â – 1 - Type: Air Source Heat Pump & Heat Recovery
- Color: Warm Grey NL503K/Dawn Grey NL507K
- Power Supply:
Φ, V, Hz
3, 380-415, 50
Nominal CapacityÂ
- Cooling (Rated) – kW:Â 28.0
- Heating (Rated) – kW:Â 30.3
- Dimensions (W x H x D) – mm: (930 x 1,690 x 760) x 1
- Net weight – kg: 171 × 1
- Number of Maximum Connectable Indoor Units:Â 16
- Pipe Connctions (Gas Pipe) – mm (inch): 22.2 (7/8)
- Sound Pressure Level (Cooling) – dB(A): 58.5
- Sound Pressure Level (Heating) – dB(A): 60.5
- Sound Power Level (Cooling) – dB(A): 79.0
- Sound Power Level (Heating) – dB(A): 80.0
Multi V 5 Singular Outdoor Unit
- Model Name:
– Combination Unit:Â ARUN120LTH5
– Independent Unit:Â ARUN120LTH5Â – 1 - Type: Air Source Heat Pump & Heat Recovery
- Color: Warm Grey NL503K/Dawn Grey NL507K
- Power Supply:
Φ, V, Hz
3, 380-415, 50
Nominal CapacityÂ
- Cooling (Rated) – kW:Â 33.6
- Heating (Rated) – kW:Â 37.8
- Dimensions (W x H x D) – mm: (930 x 1,690 x 760) x 1
- Net weight – kg: 188 × 1
- Number of Maximum Connectable Indoor Units:Â 20
- Pipe Connctions (Gas Pipe) – mm (inch): 28.58 (1-1/8)
- Sound Pressure Level (Cooling) – dB(A): 59.0
- Sound Pressure Level (Heating) – dB(A): 60.0
- Sound Power Level (Cooling) – dB(A): 79.0
- Sound Power Level (Heating) – dB(A): 80.0
Multi V 5 Singular Outdoor Unit
- Model Name:
– Combination Unit:Â ARUN140LTH5
– Independent Unit:Â ARUN140LTH5Â – 1 - Type: Air Source Heat Pump & Heat Recovery
- Color: Warm Grey NL503K/Dawn Grey NL507K
- Power Supply:
Φ, V, Hz
3, 380-415, 50
Nominal CapacityÂ
- Cooling (Rated) – kW:Â 39.2
- Heating (Rated) – kW:Â 43.9
- Dimensions (W x H x D) – mm: (1,240 x 1,690 x 760) x 1
- Net weight – kg: 220 × 1
- Number of Maximum Connectable Indoor Units:Â 23
- Pipe Connctions (Gas Pipe) – mm (inch): 28.58 (1-1/8)
- Sound Pressure Level (Cooling) – dB(A): 60.0
- Sound Pressure Level (Heating) – dB(A): 61.0
- Sound Power Level (Cooling) – dB(A): 82.0
- Sound Power Level (Heating) – dB(A): 84.0
Multi V 5 Singular Outdoor Unit
- Model Name:
– Combination Unit:Â ARUN160LTH5
– Independent Unit:Â ARUN160LTH5Â – 1 - Type: Air Source Heat Pump & Heat Recovery
- Color: Warm Grey NL503K/Dawn Grey NL507K
- Power Supply:
Φ, V, Hz
3, 380-415, 50
Nominal CapacityÂ
- Cooling (Rated) – kW:Â 44.8
- Heating (Rated) – kW:Â 50.0
- Dimensions (W x H x D) – mm:Â (1,240 x 1,690 x 760) x 1
- Net weight – kg: 220 × 1
- Number of Maximum Connectable Indoor Units:Â 26
- Pipe Connctions (Gas Pipe) – mm (inch): 28.58 (1-1/8)
- Sound Pressure Level (Cooling) – dB(A): 60.5
- Sound Pressure Level (Heating) – dB(A): 61.5
- Sound Power Level (Cooling) – dB(A): 83.0
- Sound Power Level (Heating) – dB(A): 85.0
Multi V 5 Singular Outdoor Unit
- Model Name:
– Combination Unit:Â ARUN180LTH5
– Independent Unit:Â ARUN180LTH5Â – 1 - Type: Air Source Heat Pump & Heat Recovery
- Color: Warm Grey NL503K/Dawn Grey NL507K
- Power Supply:
Φ, V, Hz
3, 380-415, 50
Nominal CapacityÂ
- Cooling (Rated) – kW:Â 50.4
- Heating (Rated) – kW:Â 56.7
- Dimensions (W x H x D) – mm:Â (1,240 x 1,690 x 760) x 1
- Net weight – kg: 260 × 1
- Number of Maximum Connectable Indoor Units:Â 29
- Pipe Connctions (Gas Pipe) – mm (inch): 28.58 (1-1/8)
- Sound Pressure Level (Cooling) – dB(A): 61.0
- Sound Pressure Level (Heating) – dB(A): 62.0
- Sound Power Level (Cooling) – dB(A): 85.0
- Sound Power Level (Heating) – dB(A): 86.0
Multi V 5 Singular Outdoor Unit
- Model Name:
– Combination Unit:Â ARUN200LTH5
– Independent Unit:Â ARUN200LTH5Â – 1 - Type: Air Source Heat Pump & Heat Recovery
- Color: Warm Grey NL503K/Dawn Grey NL507K
- Power Supply:
Φ, V, Hz
3, 380-415, 50
Nominal CapacityÂ
- Cooling (Rated) – kW:Â 56.0
- Heating (Rated) – kW:Â 63.0
- Dimensions (W x H x D)Â – mm:Â (1,240 x 1,690 x 760) x 1
- Net weight – kg: 274 × 1
- Number of Maximum Connectable Indoor Units:Â 32
- Pipe Connctions (Gas Pipe) – mm (inch): 28.58 (1-1/8)
- Sound Pressure Level (Cooling) – dB(A): 62.0
- Sound Pressure Level (Heating) – dB(A): 64.5
- Sound Power Level (Cooling) – dB(A): 86.0
- Sound Power Level (Heating) – dB(A): 87.0
Multi V 5 Singular Outdoor Unit
- Model Name:
– Combination Unit:Â ARUN220LTH5
– Independent Unit:Â ARUN220LTH5Â – 1 - Type: Air Source Heat Pump & Heat Recovery
- Color: Warm Grey NL503K/Dawn Grey NL507K
- Power Supply:
Φ, V, Hz
3, 380-415, 50
Nominal CapacityÂ
- Cooling (Rated) – kW:Â 61.6
- Heating (Rated) – kW:Â 69.3
- Dimensions (W x H x D) – mm: (1,240 x 1,690 x 760) x 1
- Net weight – kg: 274 × 1
- Number of Maximum Connectable Indoor Units:Â 35
- Pipe Connctions (Gas Pipe) – mm (inch): 28.58 (1-1/8)
- Sound Pressure Level (Cooling) – dB(A): 64.5
- Sound Pressure Level (Heating) – dB(A): 65.5
- Sound Power Level (Cooling) – dB(A): 86.0
- Sound Power Level (Heating) – dB(A): 88.0
